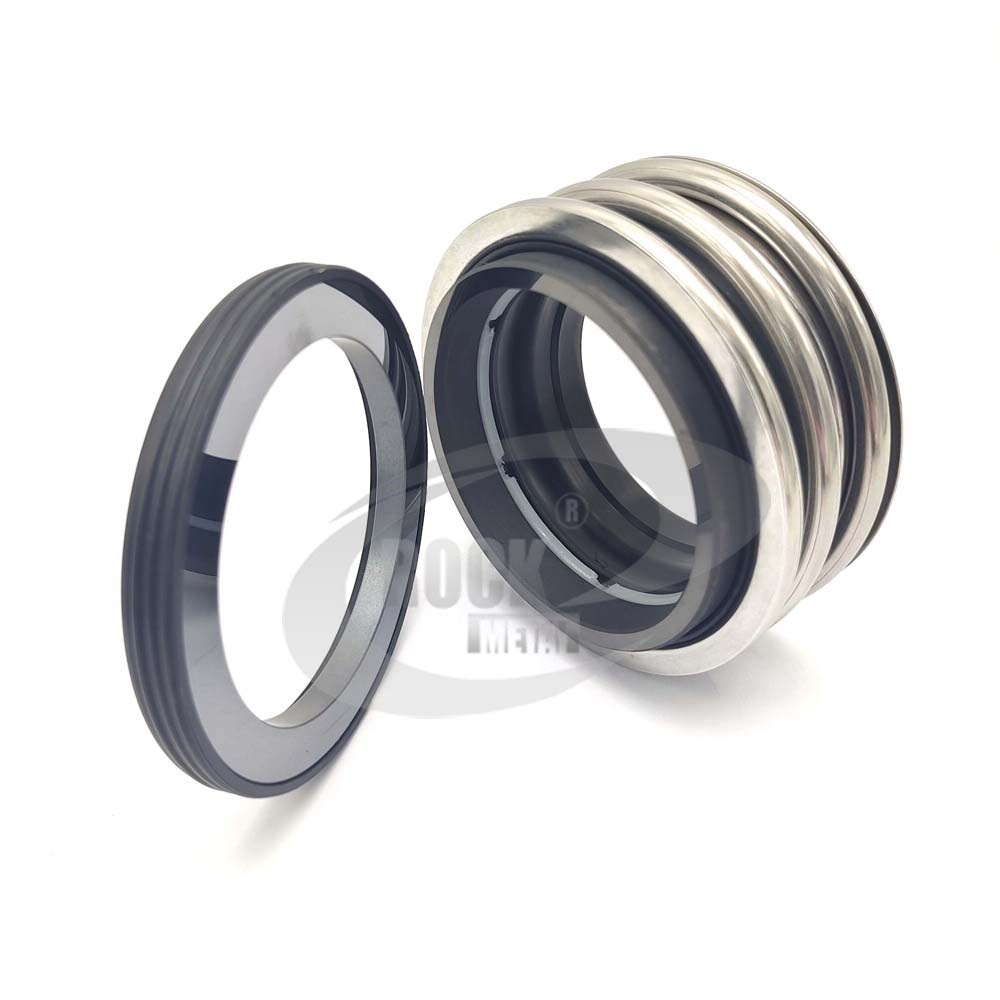

eT100 Mechanical Seal

eT100 Mechanical Seal

100 % compatible with T100/MG1

d1 = 15 … 110 mm

Pressure: p1 = 16 bar

Temperature: t = -20 °C … +140 °C

Sliding velocity: vg = 10 m/s

Recommended Applications

Process industry , Chemical industry , Pulp and paper industry , Water and waste water technology , Food and beverage industry , Sugar industry , Water, waste water, slurries (up to 5 % by weight) , Pulp (up to 4 % otro) , Latex , Dairies, beverages  ,Sulfide slurries  ,Chemicals , Oils, Chemical standard pumps, Helical screw pumps,  Stock pumps , Circulating pumps , Submersible pumps , Water and waste water pumps

Component Seal --- Rock Metal have managed to successfully install thousands of seals worldwide.

Component  seals are composed of separate rotary and stationary parts. Unlike cartridge seals, component seals are not preassembled and require skilled technicians to install them. Incorrect installation of seal faces, O-rings, and seal axial setting on the pump shaft will result in reduced seal life or in some cases, immediate seal failure.

Advantages of Component  Seals

Reduced expenses on initial seal purchase

Reduced spares costs as the individual components can be stocked vs. the entire seal

Superior adaptability to very small pumps

Disadvantages of Component Seals

The major disadvantage for component seals are their susceptibility to damage. Component seals usually have exposed parts that are more susceptible to damage during transportation or installation.

Further, component seals require precise measurements during installation to prevent seal failure. Properly installing this type of seal requires more operator time and thus a higher cost to install or re-install after a repair.
